OVERVIEW

Thanks 20-years Know-How on card lamination machinery, this new offer Auto Rotary Lamination System focuses on laminating various plastic cards, sheet inlays & contactless cards with revolutionary innovation!

The system specially designed for mass production of big sheet likes 6x8/6x9/7x8 with amazing & innovative design, works in 7x24 industrial concepts!

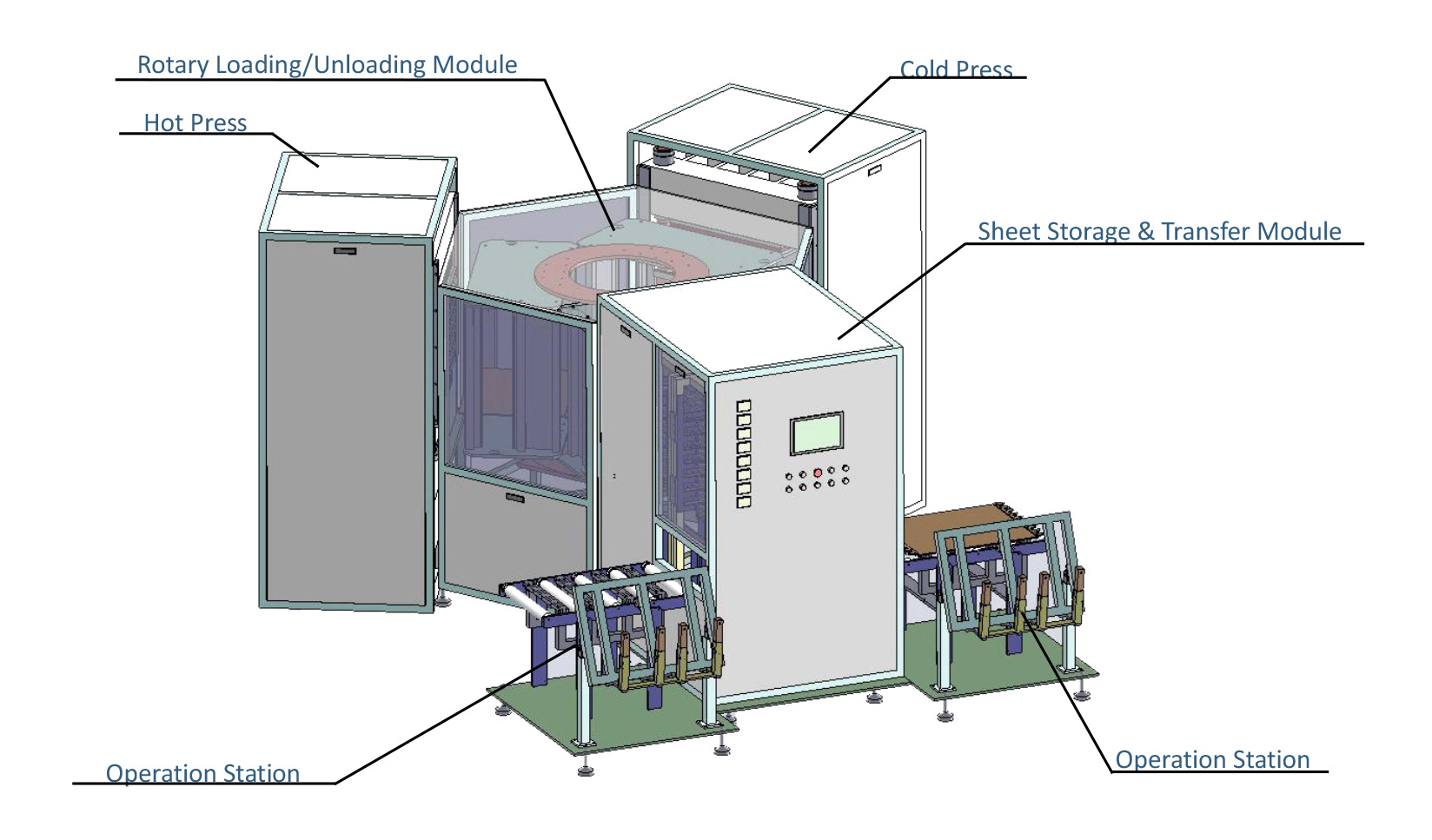

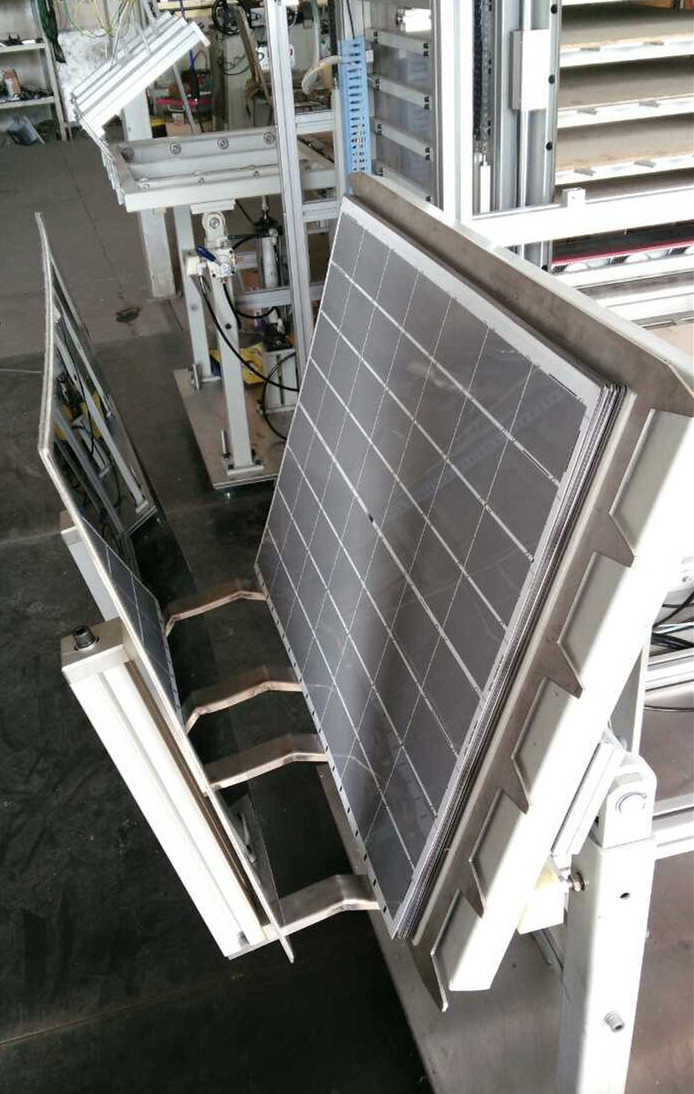

All loading & unloading jobs will be operated automatically by a smart rotary system. The laminator is able to synchronize the sheets’ feeding and discharging.
The unique tech of Slight-Press Starting will reduce the chip loss rate during RFID card/ inlay pre-lamination, keep the pressure close between upper openings and bottom openings, ensure the sheets lamination in high quality.

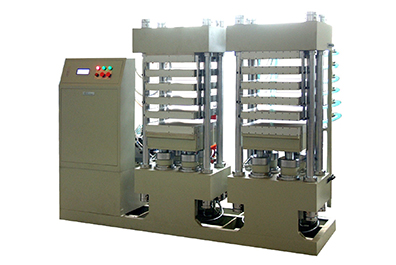

With 2 groups’ aluminum-alloy press platens, hydraulic-pump frequency conversion pressing, advanced PLC & temperature control modules, the machine can work well with 4 press cylinders in multistage laminating for excellent results.

The precise pressure control, well-distributed heating, less circle time & higher capacity, energy saving & environment friendly, are the features of such amazing system.

The tailor-made service is also available to you!



AVAILABLE
Plastic, IC and ID cards, Paper Ticket etc.


SUPPORT MATERIAL
PVC, ABS, PETG, TESLIN, Polycarbonate, Paper etc.

USERS
Manufacturers of Plastic Cards, Smart Cards, Pre-laminated Inlays

FEATURES

•  Advanced Heating System
The aluminum-alloy press platen leads the excellent even heating transit, controlled by PLC for high precision temperature & pressure transmitting frequency converter.

15 heating rods in each press platen. Advanced sensor & PLC controls each press layer’s temperature precisely. The heating temperature is up to 220 ℃ with tolerance of ±1℃.

Quick & even heat transferring will shorten the cycle time. High efficiency, energy saving and environment friendly are also advantages.

•  Advanced Pressure Control System
Pressure range 0.1-18MPa, Controlling precision ±0.1 MPa, which achieved by advanced pressure sensor and PLC control system. The top-level hydraulic system will ensure the reliable & stable working.

•  High Pressure Accuracy & Even Temperature
In heat & cold press station, there are 4 hydraulic cylinders working together and pressures controlled by 2 motor and hydraulic pumps.

20 years practices authenticated that précised temperature control comes from simple temperature setting!

ADVANTAGES

•  Amazing & Innovative Design

Thanks for 20 years’ experience on card lamination system, as the biggest market-share players from China, we released such simple & effective rotary lamination system with auto loading & unloading system.

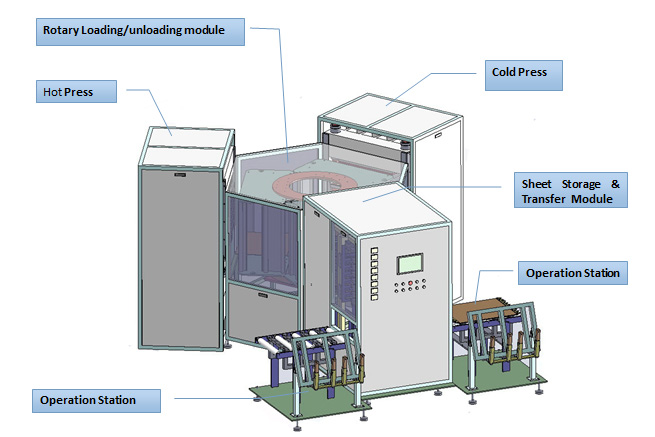

The innovative modular design and rotary loading & transportation system makes the simple structure.

Any layout including 6x8, 6x9 and 7x8. Custom made service for any global user!


SPECIFICATIONS

OPTIONAL PART

RECOMMENDATION LETTER

Thanks for 20 years’ experience on card lamination system, as the biggest market-share players from China, we released such simple & effective rotary lamination system with outstanding designs of auto loading & unloading system


The advanced pressure & temperature control system, the shortest operation route including materials loading/unloading, transfer loading system, also the most effective rotary technologies in world market.

The compact floor space is the smallest one in market, which allows user for easily machine location, installation and maintenance


Now the machine already used in top card player factory in US and other countries. Consult us for more details.

20 years experiences and numerous references will bring you the proven system and reliable services. The machine is suitable for the 7x24 mass production


With our strong service after sales team over 11 engineers, can make Call & Go easily. Our local service partner will assist you on abundant spare parts and routine maintenance. All client’s help info will be response in several hours only.


We deeply understand how important to provide client with cost-effective products. Based in China and over 20 year’s industry development, we can reach it!


All system controlled by PLC and operated by touch screen. All operation parameters set on the screen. 10 group lamination parameters can be stored in system. Get easy operation for repeat order and production management.

8.  Please kindly find the advantages below:

 •  The ideal & innovative Auto-Rotary design

 •  Supports 7 daylights (Max. to 10)

 •  The fast cycle time brings high capacity

 •  4 hydraulic in each press station and separate electric heating rod

 •  Up to 220C heating  provides reliability to make PC cards for 6*8, 7*8 or even bigger layout

 •  Modular Design & Flexible Tailor-made Service.
