OVERVIEW
Designed for card packing by anti-counterfeit poly film, good for card protection and distribution.
ADVANTAGES
• Very competitive Price
• Fast Speed:500 cards/minutes
• Durable 24×7 Industry concept
• Easy Operation by touch-screen
• Single pack, Multi-packs in chain
• Patented & Innovative Technologies
• Compact Outline and fashion design
• Four sides ultrasonic security sealing
FEATURES

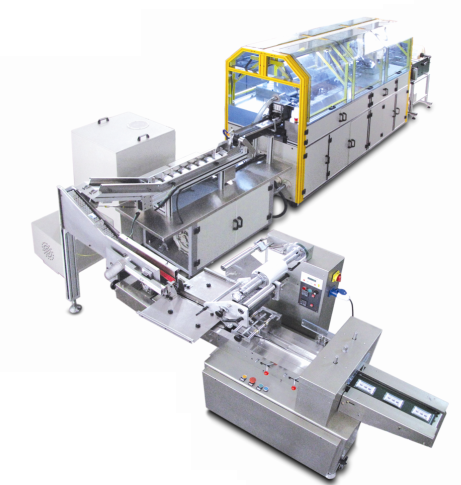

Fast, stable and low cost are the major features of RD-WM500. It is a real wrapping machine with 30,000 cards/hour speed for standard cards wrapping. Thanks to innovative design and excellent cost control in China manufacture, RD-WM500 has unbelievable Price-Performance ratio. A quick and substantial return on investment is ensured.
• Durable 24×7 Industry concept
This machine is independent designed with several patents which aims at industry mass production for 7×24×365.
• Four sides ultrasonic sealing
Four sides are sealed by ultrasonic sealing system with intricate pattern in each seal, which makes cards security enough against counterfeiting.
• Easy Operation
Touching screen panel with English interface provides operators easy and convenience to control
• Compact Outline
With excellent design concept, this powerful machine only occupies L×W×H= 5000×1100×1900mm for base machine.
• OCR System
OCR (Optical character recognition) is an options module for RD-WM500, which can be used to verify sequence or integrity for some printed contents on cards. It can be integrated to this machine easily.
• Over-printed film for wrapping

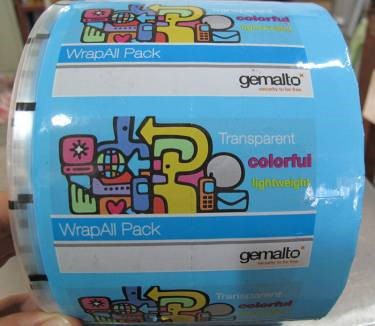

With the innovative Auto-Rectification system, we can wrap cards into the printed film pack. Normally, it’s transparent BOPP film. It can help customer to print their info onto film for promotion.
• Individual pattern design
We can help to design individual pattern which can help you against counterfeiting and improve their reputation in market.
OPTIONS
• Over Wrapping Machine
• OCR Sequence verification System
• Paper Leaflet Insert Feeder
• Individual Pattern & Mold Design
• Over-printed Film Wrapping
• Customized Security Seal Design
• Film Folding Machine (A-Frame)
SPECIFICATIONS
|
Card Format |
• Paper cards, PVC, Conventional Plastic Cards/ CR80 ISO standard. |
|
Card Thickness |
• 0.3 ~ 1mm |
|
Throughput |
• 30,000 cards /hour for standard card wrapping(85.6 x 54 mm) |
|
Wrapping Film |
• BOPP/OPP Center-folded (width: 115mm, thickness: 25µm ~ 35µm) |
|

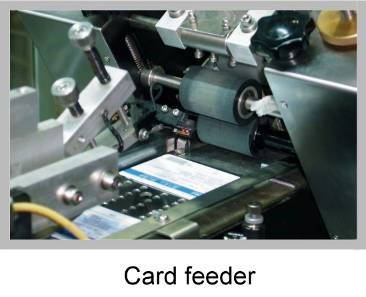

Card Feeding |
• By friction |
|
Card Sealing |
• 4 edges by ultrasonic. Can help customer to design the different pattern |
|
Machinery Material |
• Stainless steel and aluminum alloy coated steel plated, international quality standard. |
|
Key Parts |
• Film deliverer-1 set |
|
Drive Configuration |
• Motor: Japanese MITSUBISHI/YASKAWA motor |
|
Auto feeders |
• 2 sets, Servo motors by MITSUBISHI/ YASKAWA. |
|
Card Collector |
• Japan OM motor, film scrap by vacuum collector |
|
Power Supply |
• ~220V, ≥30A |
|
Dimensions |
• L×W×H=5000×1100×1900mm for base machine (exclusive overwrapping) |
|
Delivery Lead Time |
• 30 working days excluding the training days |
|
Training Time |
• Easy open line by advanced roll-cutting mode; |
|
Others |
• 5 days in seller's manufacturer. |
• Fast, stable and low cost
Fast, stable and low cost are the major features of RD-WM500. It is a real wrapping machine with 30,000 cards/hour speed for standard cards wrapping. Thanks to innovative design and excellent cost control in China manufacture, RD-WM500 has unbelievable Price-Performance ratio. A quick and substantial return on investment is ensured.
• Durable 24×7 Industry concept
This machine is independent designed with several patents which aims at industry mass production for 7×24×365.
• Four sides ultrasonic sealing
Four sides are sealed by ultrasonic sealing system with intricate pattern in each seal, which makes cards security enough against counterfeiting.
• Easy Operation
Touching screen panel with English interface provides operators easy and convenience to control
• Compact Outline
With excellent design concept, this powerful machine only occupies L×W×H= 5000×1100×1900mm for base machine.
• OCR System
OCR (Optical character recognition) is an options module for RD-WM500, which can be used to verify sequence or integrity for some printed contents on cards. It can be integrated to this machine easily.
• Over-printed film for wrapping
With the innovative Auto-Rectification system, we can wrap cards into the printed film pack. Normally, it’s transparent BOPP film. It can help customer to print their info onto film for promotion.
• Individual pattern design
We can help to design individual pattern which can help you against counterfeiting and improve their reputation in market.
|
Card Format |
• Paper cards, PVC, Conventional Plastic Cards/ CR80 ISO standard. |
|
Card Thickness |
• 0.3 ~ 1mm |
|
Throughput |
• 30,000 cards /hour for standard card wrapping(85.6 x 54 mm) |
|
Wrapping Film |
• BOPP/OPP Center-folded (width: 115mm, thickness: 25µm ~ 35µm) |
|
Card Feeding |
• By friction |
|
Card Sealing |
• 4 edges by ultrasonic. Can help customer to design the different pattern |
|
Machinery Material |
• Stainless steel and aluminum alloy coated steel plated, international quality standard. |
|
Key Parts |
• Film deliverer-1 set |
|
Drive Configuration |
• Motor: Japanese MITSUBISHI/YASKAWA motor |
|
Auto feeders |
• 2 sets, Servo motors by MITSUBISHI/ YASKAWA. |
|
Card Collector |
• Japan OM motor, film scrap by vacuum collector |
|
Power Supply |
• ~220V, ≥30A |
|
Dimensions |
• L×W×H=5000×1100×1900mm for base machine (exclusive overwrapping) |
|
Delivery Lead Time |
• 30 working days excluding the training days |
|
Training Time |
• Easy open line by advanced roll-cutting mode; |
|
Others |
• 5 days in seller's manufacturer. |
