Sheet Proof Machine
Presentation:Sheet proof, sampling inspection and printing quality boutique analysis
Advantage:Easy Template Setting & Switch, Flexible Artwork Doc Compatible, High Resolution
Application:Card Manufacturer
Brochure Download:Down
- Overview
- Typical Client Needs
- Photo & Video
- Features
- Specification
- Why Buy It
- Reference & Feedback
- Service & Support
- FAQ
- Question & Advice
OVERVIEW
Sheet proof, sampling inspection during production and printing quality boutique analysis.
PRODUCT VALUE
• Printing quality boutique analysis.
• Control the printing quality from the fountainhead, avoid continuous defects and reduce the work intensity and pressure of the sheet proof staff

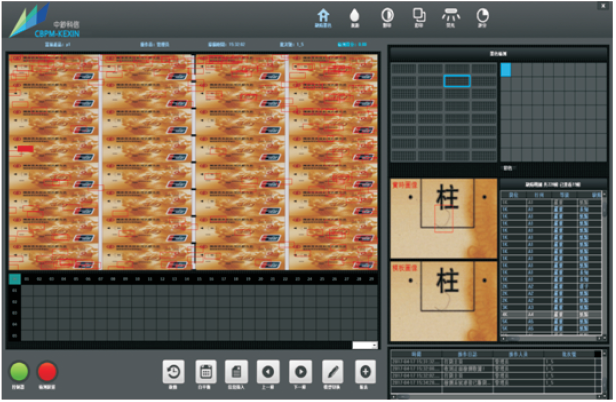

• The real-time sampling inspection during production will generate a professional survey report which provide quantized assessment to manage production.
• Save sheet proof staff. One sheet proof machine can control the printing quality of two printers according to its high efficient full sheet inspection characteristic.
FEATURES
• Template setting within 15 mins
• Switch template at ease clicking a key
• Sheet proof is compatible with TIFF, JPG, AL, PSD, PDF, ETC.
• Can analyze line width, ink color and adjust itself automatically (optional)
• Inspection tolerance is sectional and controllable and the inspection tolerance and parameters on every region is independent and adjustable
• Imagine unit design is systematic and scientific. Imagine line is clear and distortion is small. Mechanic platform is designed with high tolerance and multiple camera scan resolution is ±0.5 pixel
• Designed with high resolutions cameras and lens. Resolution is 0.025mm/pixel which satisfy the requirement to inspect common printing defects. It’s the highest resolution that current offline inspection system could provide and it contributes to forme line inspection
• Lots of self-developed high-tech keep the inspection system stable and its technical superiority including camera marking tech, color marking tech, color inspection tech which meets human eye perception and patent flexible template inspection tech.
SPECIFICATIONS
TECHNICAL TOLERANCE
• Universal Tolerance: ≤0.15mm x 0.15mm

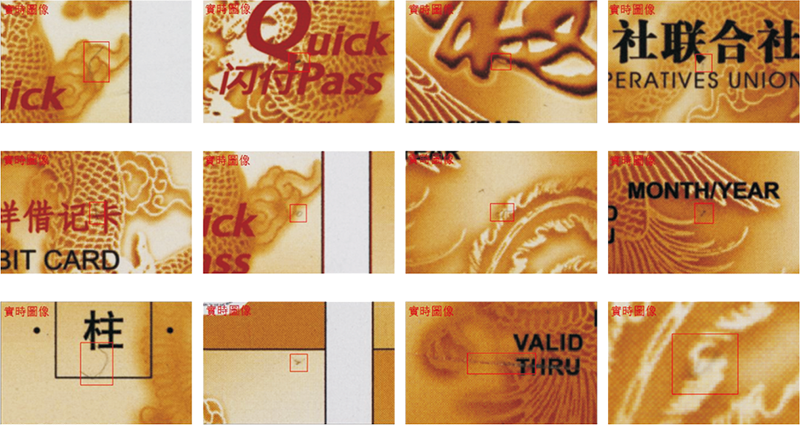

• Inspection Item: ink speck, missing text, scratch, ink piling, reverse, greasing, ghosting/doubling, ink picks, smear, dirty ink, etc.
REFERENCE LEGEND
Sheet proof, sampling inspection during production and printing quality boutique analysis.
PRODUCT VALUE
• Printing quality boutique analysis.
• Control the printing quality from the fountainhead, avoid continuous defects and reduce the work intensity and pressure of the sheet proof staff
• The real-time sampling inspection during production will generate a professional survey report which provide quantized assessment to manage production.
• Save sheet proof staff. One sheet proof machine can control the printing quality of two printers according to its high efficient full sheet inspection characteristic.
FEATURES
• Template setting within 15 mins
• Switch template at ease clicking a key
• Sheet proof is compatible with TIFF, JPG, AL, PSD, PDF, ETC.
• Can analyze line width, ink color and adjust itself automatically (optional)
• Inspection tolerance is sectional and controllable and the inspection tolerance and parameters on every region is independent and adjustable
• Imagine unit design is systematic and scientific. Imagine line is clear and distortion is small. Mechanic platform is designed with high tolerance and multiple camera scan resolution is ±0.5 pixel
• Designed with high resolutions cameras and lens. Resolution is 0.025mm/pixel which satisfy the requirement to inspect common printing defects. It’s the highest resolution that current offline inspection system could provide and it contributes to forme line inspection
• Lots of self-developed high-tech keep the inspection system stable and its technical superiority including camera marking tech, color marking tech, color inspection tech which meets human eye perception and patent flexible template inspection tech.
SPECIFICATIONS
|
Dimension |
• 1760mm(L) x 1200mm(W) x 1500mm(H) |
|
Weight |
• < 400kg |
|
Imaging Resolution |
• 0.025mm |
|
Max Inspection Size |
• 600mm x 600mm |
|
Sheet Weight |
• 40~350g |
|
Single Sheet Inspection Time |
• < 45s |
TECHNICAL TOLERANCE
• Universal Tolerance: ≤0.15mm x 0.15mm
• Inspection Item: ink speck, missing text, scratch, ink piling, reverse, greasing, ghosting/doubling, ink picks, smear, dirty ink, etc.
|
Defect |
Corresponding Inspection Tolerance |
|
Light, missing printing area on general region |
• ≥0.1mm x 0.1mm |
|
Flood, spot on general region |
• ≥0.15mm x 0.15mm |
|
Flood, spot on special region |
• ≥0.1mm x 0.1mm |
|
Offset printing register mark |
• ≥0.2mm |
|
Poor Registration |
• ≥0.1mm |
|
Shade |
• ≥6NBS |
|
Folded corner, strike-through, reverse and half prints |
• 100% |
REFERENCE LEGEND
Still under construction. coming soon...
Still under construction. coming soon...
FEATURES
• Template setting within 15 mins
• Switch template at ease clicking a key
• Sheet proof is compatible with TIFF, JPG, AL, PSD, PDF, ETC.
• Can analyze line width, ink color and adjust itself automatically (optional)
• Inspection tolerance is sectional and controllable and the inspection tolerance and parameters on every region is independent and adjustable
• Imagine unit design is systematic and scientific. Imagine line is clear and distortion is small. Mechanic platform is designed with high tolerance and multiple camera scan resolution is ±0.5 pixel
• Designed with high resolutions cameras and lens. Resolution is 0.025mm/pixel which satisfy the requirement to inspect common printing defects. It’s the highest resolution that current offline inspection system could provide and it contributes to forme line inspection
• Lots of self-developed high-tech keep the inspection system stable and its technical superiority including camera marking tech, color marking tech, color inspection tech which meets human eye perception and patent flexible template inspection tech.
• Template setting within 15 mins
• Switch template at ease clicking a key
• Sheet proof is compatible with TIFF, JPG, AL, PSD, PDF, ETC.
• Can analyze line width, ink color and adjust itself automatically (optional)
• Inspection tolerance is sectional and controllable and the inspection tolerance and parameters on every region is independent and adjustable
• Imagine unit design is systematic and scientific. Imagine line is clear and distortion is small. Mechanic platform is designed with high tolerance and multiple camera scan resolution is ±0.5 pixel
• Designed with high resolutions cameras and lens. Resolution is 0.025mm/pixel which satisfy the requirement to inspect common printing defects. It’s the highest resolution that current offline inspection system could provide and it contributes to forme line inspection
• Lots of self-developed high-tech keep the inspection system stable and its technical superiority including camera marking tech, color marking tech, color inspection tech which meets human eye perception and patent flexible template inspection tech.
|
Dimension |
• 1760mm(L) x 1200mm(W) x 1500mm(H) |
|
Weight |
• < 400kg |
|
Imaging Resolution |
• 0.025mm |
|
Max Inspection Size |
• 600mm x 600mm |
|
Sheet Weight |
• 40~350g |
|
Single Sheet Inspection Time |
• < 45s |
