Dual-heads Hot-stamping Machine RD-HM12E
Presentation: High Speed and accurate hologram hotstamping machine
Advantage: High Speed, Accuracte, Stable and Easy Operation
Application: Card manufacturers
Brochure Download:Down
- Overview
- Typical Client Needs
- Photo & Video
- Features
- Specification
- Why Buy It
- Reference & Feedback
- Service & Support
- FAQ
- Question & Advice
OVERVIEW

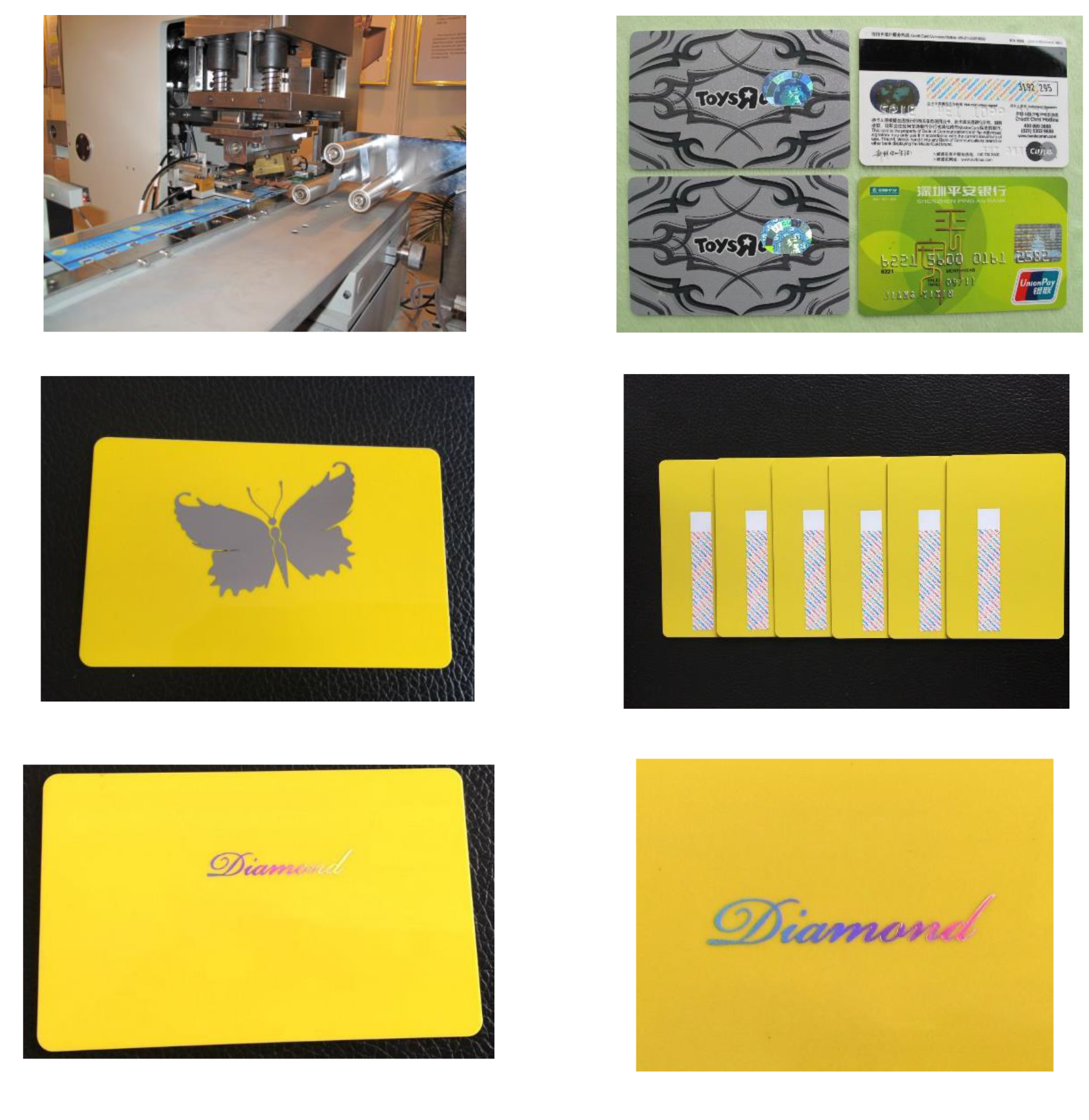

Hot-stamping is a key process for plastic cards production on Hologram, Signature Panel or custom pattern make. Combined advanced design and assembly technologies, RD-HM 12E presents the top-class Hot-stamping system in global market!
RD-HM 12E can apply both hologram and signature panel through one pass.
The shape of hot-stamping head also can be customized for your various Holograms, Signature panel or any custom pattern hot-stamping production, not only for banking card.
It’s an upgraded version of old single head design, which has been widely used in banking card industry over 10 years.
APPLICATIONS
• Plastic/Smart Card Manufacturer
• Hot-stamping for Hologram, Signature Panel or Custom Pattern
FEATURES
• Card loading by suction pulling which eliminate the scratches.
• Card surface is quite even after hologram and signature panel’s production.
• More accurate positioning for hologram foil and signature panel, control by X, Y Axis.
• Step motor for material loading, repeatable stamping interval to reduce the waste material.
• HMI+PLC+ Servo Control System makes the machine easy to operate and maintenance.
• Servo control system makes easily, adjustable hot stamping time and pressure.
• Card’s flip over system makes 2 sides hot-stamping for hologram & signature panel synchronously.
• Optional 2 sets tape cleaning systems can clean the dirty and wasted material synchronously.
SPECIFICATIONS
Hot-stamping is a key process for plastic cards production on Hologram, Signature Panel or custom pattern make. Combined advanced design and assembly technologies, RD-HM 12E presents the top-class Hot-stamping system in global market!
RD-HM 12E can apply both hologram and signature panel through one pass.
The shape of hot-stamping head also can be customized for your various Holograms, Signature panel or any custom pattern hot-stamping production, not only for banking card.
It’s an upgraded version of old single head design, which has been widely used in banking card industry over 10 years.
APPLICATIONS
• Plastic/Smart Card Manufacturer
• Hot-stamping for Hologram, Signature Panel or Custom Pattern
FEATURES
• Card loading by suction pulling which eliminate the scratches.
• Card surface is quite even after hologram and signature panel’s production.
• More accurate positioning for hologram foil and signature panel, control by X, Y Axis.
• Step motor for material loading, repeatable stamping interval to reduce the waste material.
• HMI+PLC+ Servo Control System makes the machine easy to operate and maintenance.
• Servo control system makes easily, adjustable hot stamping time and pressure.
• Card’s flip over system makes 2 sides hot-stamping for hologram & signature panel synchronously.
• Optional 2 sets tape cleaning systems can clean the dirty and wasted material synchronously.
SPECIFICATIONS
|
Card Dimension |
• ISO Standard Card/CR80 |
|
Stack Capacity |
• 500 cards for infeed magazine |
|
Impression Area on Card |
• 85.6*48mm |
|
Hot-stamping Pressure |
• 0.6 MPa (adjustable) |
|
Power Supply |
• 3 Phase AC 380V 50Hz (standard) |
|
Power Consumption |
• 80 KW |
|
Run-rate |
• 3000 cards/hour (hologram + S.P.) |
|
Position Accuracy |
• ± 0.15mm |
|
Net Weight |
• 1,000 Kg |
|
Net Dimension |
• 2,300mm (L) × 1,250mm (W) × 1,800mm (H) |
|
Warranty |
• One Year |
|
Operator |
• One Person |
Still under construction. coming soon...
• Card loading by suction pulling which eliminate the scratches.
• Card surface is quite even after hologram and signature panel’s production.
• More accurate positioning for hologram foil and signature panel, control by X, Y Axis.
• Step motor for material loading, repeatable stamping interval to reduce the waste material.
• HMI+PLC+ Servo Control System makes the machine easy to operate and maintenance.
• Servo control system makes easily, adjustable hot stamping time and pressure.
• Card’s flip over system makes 2 sides hot-stamping for hologram & signature panel synchronously.
• Optional 2 sets tape cleaning systems can clean the dirty and wasted material synchronously.
• Card surface is quite even after hologram and signature panel’s production.
• More accurate positioning for hologram foil and signature panel, control by X, Y Axis.
• Step motor for material loading, repeatable stamping interval to reduce the waste material.
• HMI+PLC+ Servo Control System makes the machine easy to operate and maintenance.
• Servo control system makes easily, adjustable hot stamping time and pressure.
• Card’s flip over system makes 2 sides hot-stamping for hologram & signature panel synchronously.
• Optional 2 sets tape cleaning systems can clean the dirty and wasted material synchronously.
|
Card Dimension |
• ISO Standard Card/CR80 |
|
Stack Capacity |
• 500 cards for infeed magazine |
|
Impression Area on Card |
• 85.6*48mm |
|
Hot-stamping Pressure |
• 0.6 MPa (adjustable) |
|
Power Supply |
• 3 Phase AC 380V 50Hz (standard) |
|
Power Consumption |
• 80 KW |
|
Run-rate |
• 3000 cards/hour (hologram + S.P.) |
|
Position Accuracy |
• ± 0.15mm |
|
Net Weight |
• 1,000 Kg |
|
Net Dimension |
• 2,300mm (L) × 1,250mm (W) × 1,800mm (H) |
|
Warranty |
• One Year |
|
Operator |
• One Person |
