UHF Tag Tester T9000
Presentation:The best way to make testing solve your UHF headache
Advantage:Easy operation, fast and stable. Small device
Application:UHF product manufacturers
Brochure Download:Down
- Overview
- Typical Client Needs
- Photo & Video
- Features
- Specification
- Why Buy It
- Reference & Feedback
- Service & Support
- FAQ
- Question & Advice
Comprehensive support from communication performance evaluation to inspection in mass production of UHF band RFID tags.
Communication Performance Evaluation
Communicates the UHF tag by switching power in the frequency range from 800MHz to 1000MHz and evaluates its communication performance of the UHF tag with plots.
Moreover, the strength of response level from the tag can be visually verified by indicating in a waveform.
Inspection for Mass Production
A 100% inspection using a mass production equipment can be performed by judging Pass/FAIL via arbitrary test points after set several test points.
Optional DIO makes you to control T9000 from PLC on the automatic machine side.
Easy Operation
Easy to test from the dedicated software. No need to complicated settings.
Main unit, software, and antenna are included-all in one package, readily available!
Offering Affordable and Cost Effective UHF Tag Tester
UHF band tags have been rapidly diffused, but the tag cost itself is cheap. Thus, introducing an expensive tester for UHF tags is difficult.
Therefore, Testram aimed to provide UHF tag tests at low-cost.
Testram supports UHF tag tests with this easy-to-use tester. No need to set some complicated test processes.

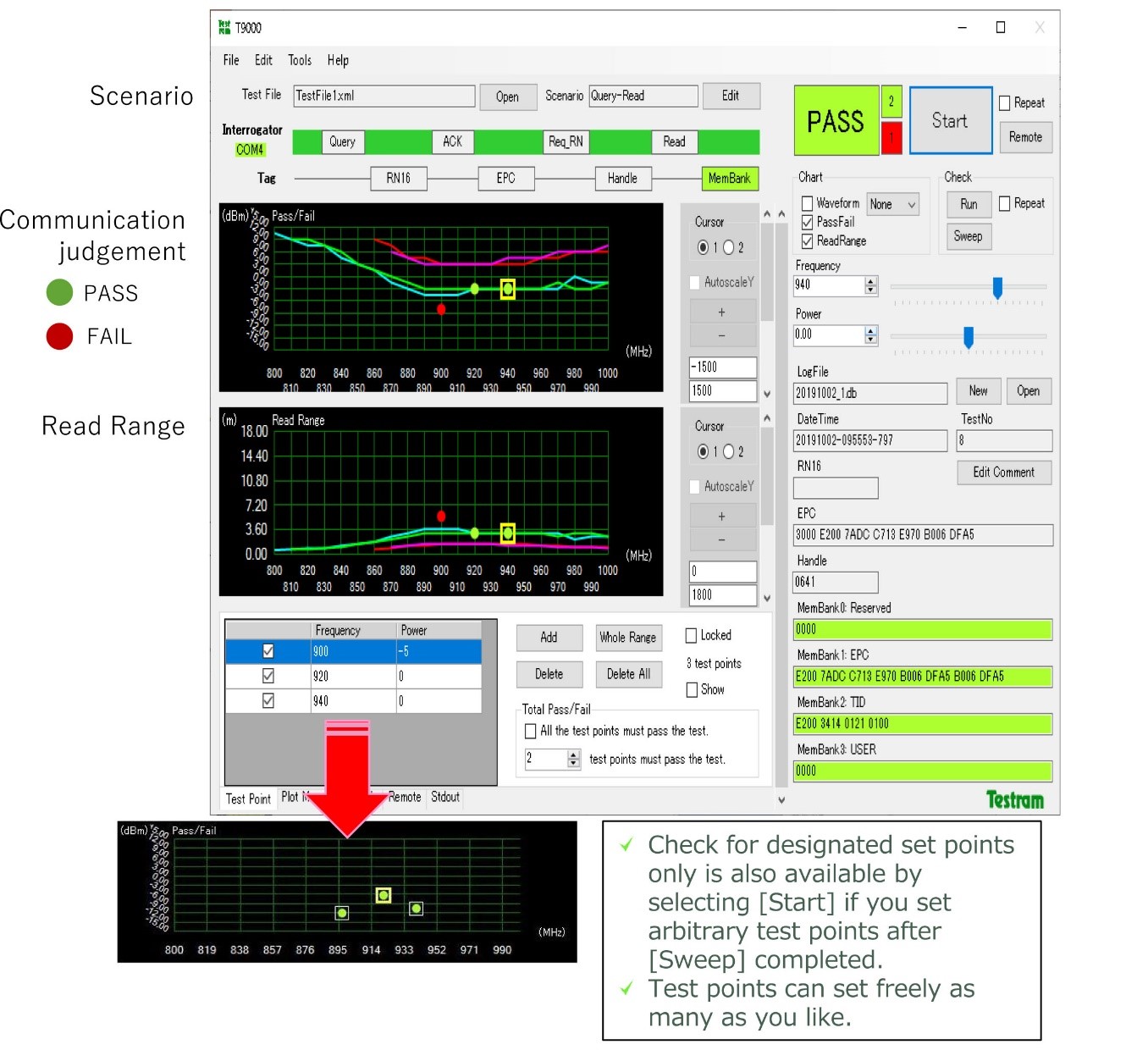

Test Window

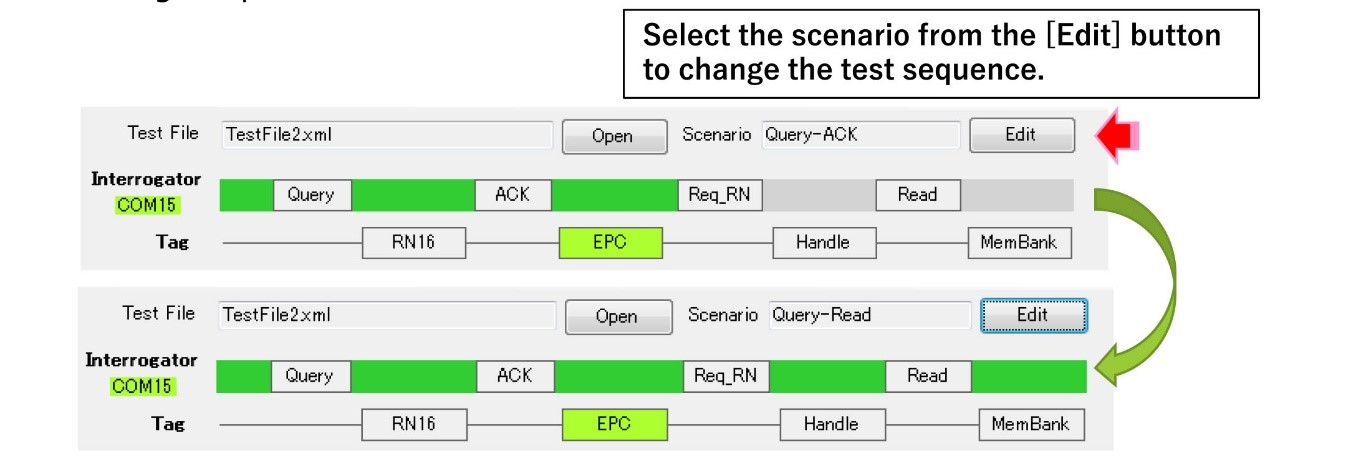

Freely Scenario Settings
Settings can be freely changed in accordance with the test sequence from Query response to EPC/TID read at scenario settings.
You can change the scenario by clicking a mouse only. No disturbing complicated settings required.

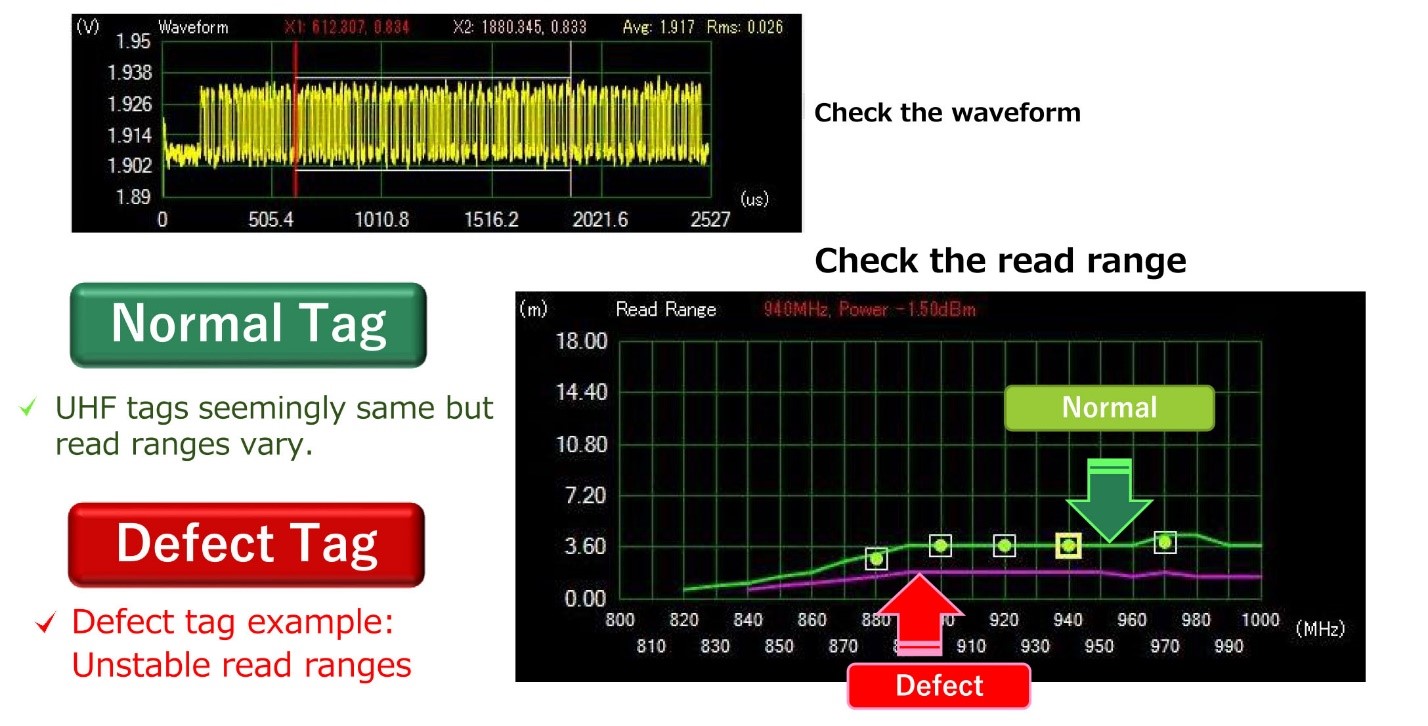

Identification of Unstable Tags
√ Unable to identify by communication test via the reader/writer.
√ Enable to identify from the waveform and the read range.
Package Configurations
The design and specifications are subject to change without prior notice.
Specifications
Test time depends on the PC used, settings of the equipment and characteristics of the device under test.
Other Options
√ Dio option
√ Wooden adjuster (in preparation)
√ 4-panel UHF-RFID radio wave absorbent material box

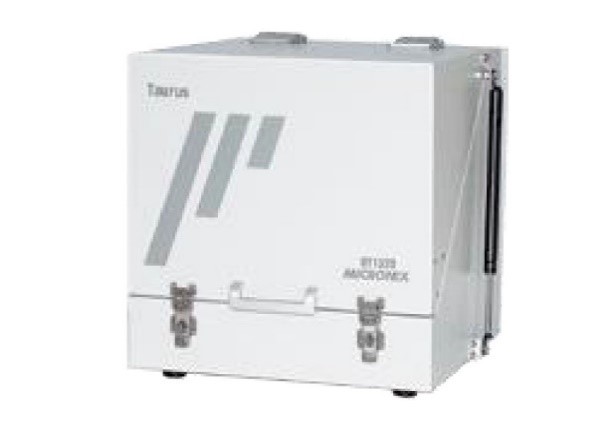

√ Anechoic box
Made by MICRONIX Corp.
Model No.: MY1520+MYA77
Communication Performance Evaluation
Communicates the UHF tag by switching power in the frequency range from 800MHz to 1000MHz and evaluates its communication performance of the UHF tag with plots.
Moreover, the strength of response level from the tag can be visually verified by indicating in a waveform.
Inspection for Mass Production
A 100% inspection using a mass production equipment can be performed by judging Pass/FAIL via arbitrary test points after set several test points.
Optional DIO makes you to control T9000 from PLC on the automatic machine side.
Easy Operation
Easy to test from the dedicated software. No need to complicated settings.
Main unit, software, and antenna are included-all in one package, readily available!
Offering Affordable and Cost Effective UHF Tag Tester
UHF band tags have been rapidly diffused, but the tag cost itself is cheap. Thus, introducing an expensive tester for UHF tags is difficult.
Therefore, Testram aimed to provide UHF tag tests at low-cost.
Testram supports UHF tag tests with this easy-to-use tester. No need to set some complicated test processes.
Test Window
Freely Scenario Settings
Settings can be freely changed in accordance with the test sequence from Query response to EPC/TID read at scenario settings.
You can change the scenario by clicking a mouse only. No disturbing complicated settings required.
Identification of Unstable Tags
√ Unable to identify by communication test via the reader/writer.
√ Enable to identify from the waveform and the read range.
Package Configurations
|
Main Unit |
• T9000 Main Unit |
|
Software |
• Installation CD |
|
Measuring Antenna |
• TX antenna, RX antenna |
|
Accessories |
• SMA cable (2pcs.), USB cable, UHF-RFID radio wave absorbent panel |
Specifications
|
Communication Protocols |
• EPC Class1 Gen2 |
|
Modulations |
• Interrogator. 100% ASK, Tag: FM0 |
|
Test Items |
• Communication PASS/FAIL |
|
Setting Items |
• Scenario, Career frequency, Transmit power, Transmit and receive rate |
|
Frequency Range |
• 800MHz~1000MHz (1MHz step) |
|
Transmit Power |
• -15~+15 dBm (0.25 dBm step) |
|
Test Time |
• At EPC reading test (1 point /100msec below*) |
|
Logs |
• Test time, PASS/FAIL, received data |
|
Power Supply |
• USB bus powered |
Other Options
√ Dio option
√ Wooden adjuster (in preparation)
√ 4-panel UHF-RFID radio wave absorbent material box
√ Anechoic box
Made by MICRONIX Corp.
Model No.: MY1520+MYA77
Specifications
Test time depends on the PC used, settings of the equipment and characteristics of the device under test.
|
Communication Protocols |
• EPC Class1 Gen2 |
|
Modulations |
• Interrogator. 100% ASK, Tag: FM0 |
|
Test Items |
• Communication PASS/FAIL |
|
Setting Items |
• Scenario, Career frequency, Transmit power, Transmit and receive rate |
|
Frequency Range |
• 800MHz~1000MHz (1MHz step) |
|
Transmit Power |
• -15~+15 dBm (0.25 dBm step) |
|
Test Time |
• At EPC reading test (1 point /100msec below*) |
|
Logs |
• Test time, PASS/FAIL, received data |
|
Power Supply |
• USB bus powered |
