RF LF & HF Performance Tester T8200PRO-G

RF LF & HF Performance Tester T8200PRO-G

Presentation:The best way to make testing for your LF/HF products

Advantage:Easy operation, fast and stable. Small device

Application:Resonant frequency, attenuation, Q value, support to read UID code and recognize some chips, etc.

Brochure Download:Down

T8200PRO-G is a top RFID comprehensive tester from Testram Japan. It’s a good choice for RFID, Smart card (contactless and dual interface), the development and manufacturing of power inductors, scientific research and education, laboratories or testing institutions and easily integrate into an automated production line.

Key Features
• Accurately measure the parameters of various sizes of LF & HF devices of various sizes, include:
Resonant frequency, attenuation, Q value, support to read UID code and recognize some chips.

• Able to test transmission or reflection properties (Including directional coupling), Adjustable RF input power, Analog card reader.

• Test results and waveform can be automatically written to the log file.

• Preset testing range to determine whether the sample is qualified.

• Single computer version (for single use) and on-line automation solutions (for mass production).

Applications

• Smart card, RFID tag resonance frequency detection:

Tell the measurement result is correct or not; automatically generate check log files;

Adjustable RF power -30dBm~15dBm.

RF antenna can be detected before chip binding, such as dual interface card coil inlay.

• RFID read/write antenna resonant frequency detection.

• Self-resonance frequency detection of wireless power supply coil and power inductor.

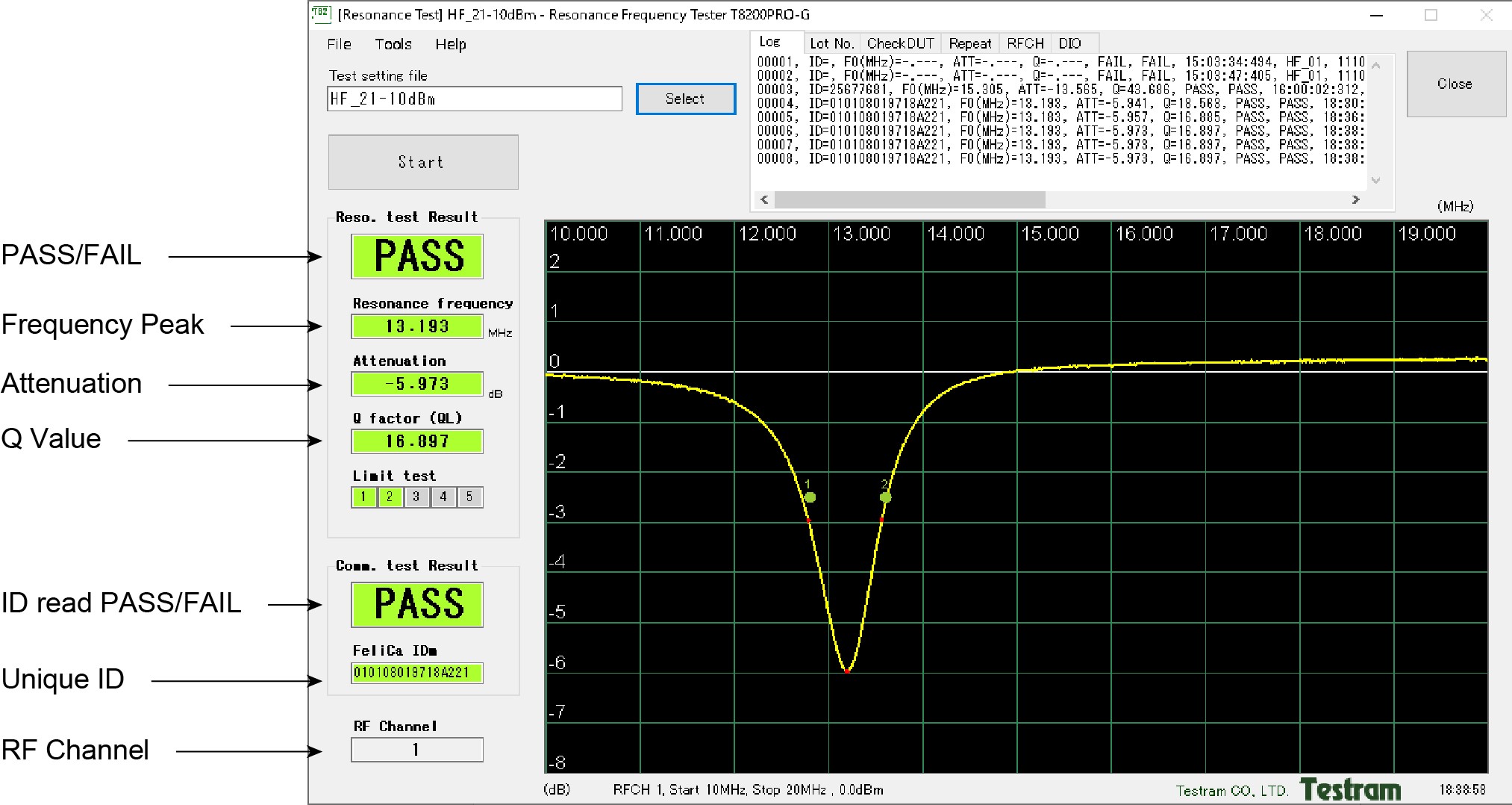

Test Results

Specifications

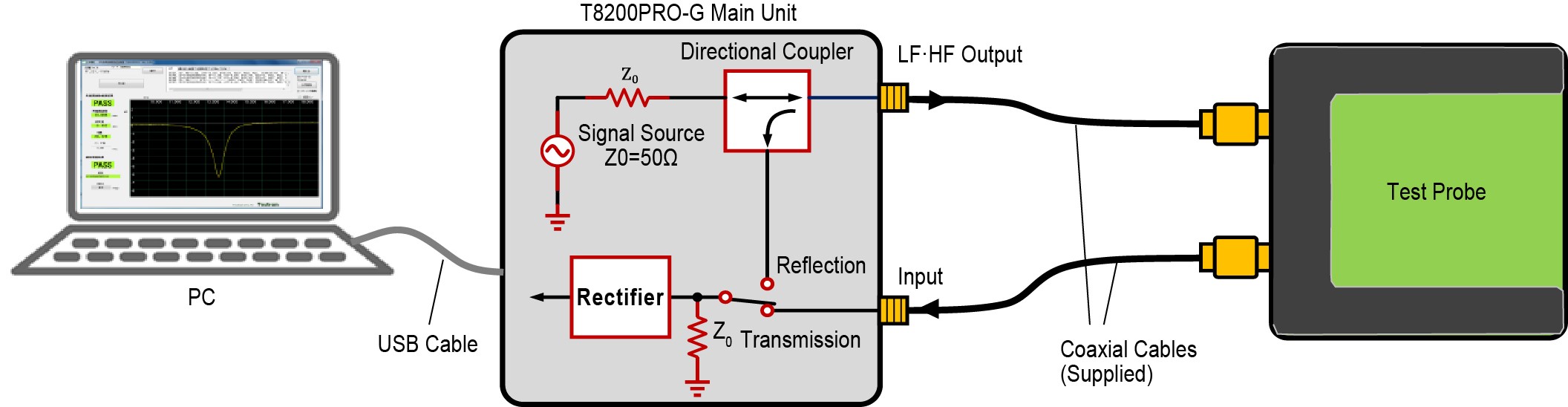

Testing Principle	• Contactless resonance frequency with magnetic coupling
Measuring Mode	• Transmission/reflection characteristics
Protocol	• ISO14443A (MIFARE Classic, MIFARE Ultralight) • ISO14443B (Only PUPI), Felica • ISO15693 (Tag-it HF-I Plus/Pro, ICODE SLIX2）
Data Points	• 100~2048 points
Test Time (data points=1000)	• Without ID reading: 0.5 sec (typ) • With ID reading: 1 sec (typ)
Log File	• Log file (csv): • UID, PASS/FAIL, Resonance Frequency, Attenuation, Q Value • Waveform format: csv, jpg
Frequency Range	• 10KHz~100MHz
Application Power (50Ω load)	• -30~15dBm
DIO Interface (optional)	• Isolated input/output
System Requirements	• PC(OS) Windows7, Windows8.1, Windows10 • ≥USB2.0
Power Supply	• USB bus power (current consumption≤500mA)
Packaging List	• Main unit, USB cable, Coaxial cable(500mm x2), High frequency standard card size test fixture, Optional different size specifications for testing antenna plates, Install CD
Dimension Weight	• 125(W)x165(D)x40(H)mm, Protrusion not included, 0.8kg

• Accurately measure the parameters of various sizes of LF & HF devices of various sizes, include:
Resonant frequency, attenuation, Q value, support to read UID code and recognize some chips.

• Able to test transmission or reflection properties (Including directional coupling), Adjustable RF input power, Analog card reader.

• Test results and waveform can be automatically written to the log file.

• Preset testing range to determine whether the sample is qualified.

• Single computer version (for single use) and on-line automation solutions (for mass production).

Testing Principle	• Contactless resonance frequency with magnetic coupling
Measuring Mode	• Transmission/reflection characteristics
Protocol	• ISO14443A (MIFARE Classic, MIFARE Ultralight) • ISO14443B (Only PUPI), Felica • ISO15693 (Tag-it HF-I Plus/Pro, ICODE SLIX2）
Data Points	• 100~2048 points
Test Time (data points=1000)	• Without ID reading: 0.5 sec (typ) • With ID reading: 1 sec (typ)
Log File	• Log file (csv): • UID, PASS/FAIL, Resonance Frequency, Attenuation, Q Value • Waveform format: csv, jpg
Frequency Range	• 10KHz~100MHz
Application Power (50Ω load)	• -30~15dBm
DIO Interface (optional)	• Isolated input/output
System Requirements	• PC(OS) Windows7, Windows8.1, Windows10 • ≥USB2.0
Power Supply	• USB bus power (current consumption≤500mA)
Packaging List	• Main unit, USB cable, Coaxial cable(500mm x2), High frequency standard card size test fixture, Optional different size specifications for testing antenna plates, Install CD
Dimension Weight	• 125(W)x165(D)x40(H)mm, Protrusion not included, 0.8kg
